ASLAN’S AAC Block – Autoclaved Concrete Block in Qatar – Cellular Concrete Blocks – Building Materials
AAC blocks are suitable for load bearing and non-loadbearing walls.
ASLAN building materials blocks are delivered ready for use and packed in easily transportable wooden pallets. The pallet should be unloaded at the site by a construction site crane, forklift truck or other suitable hoisting equipment. Never dump them from the truck.
ASLAN blocks are produced in extremely narrow dimensional tolerances of (1 mm). Therefor they are laid by the thin-bed mortar glue-mortar method. The joint is 3-5 mm thick.
ASLAN blocks forinfill masonry are the logical advancement in development of ASLAN blocks with Tongu and Grove.
ASLAN AAC Slabs, Wall Panels and Pre Cast Concrete Walls are reinforced aerated concrete products, which produced in accordance to code DIN EN 12605. Being ready-to-use, prefabricated structure elements have their full load-bearing capacity directly after production. After delivery, slabs can be erected simply in a short time. There is no need for shuttering work. Only the joints must be grounded with concrete.

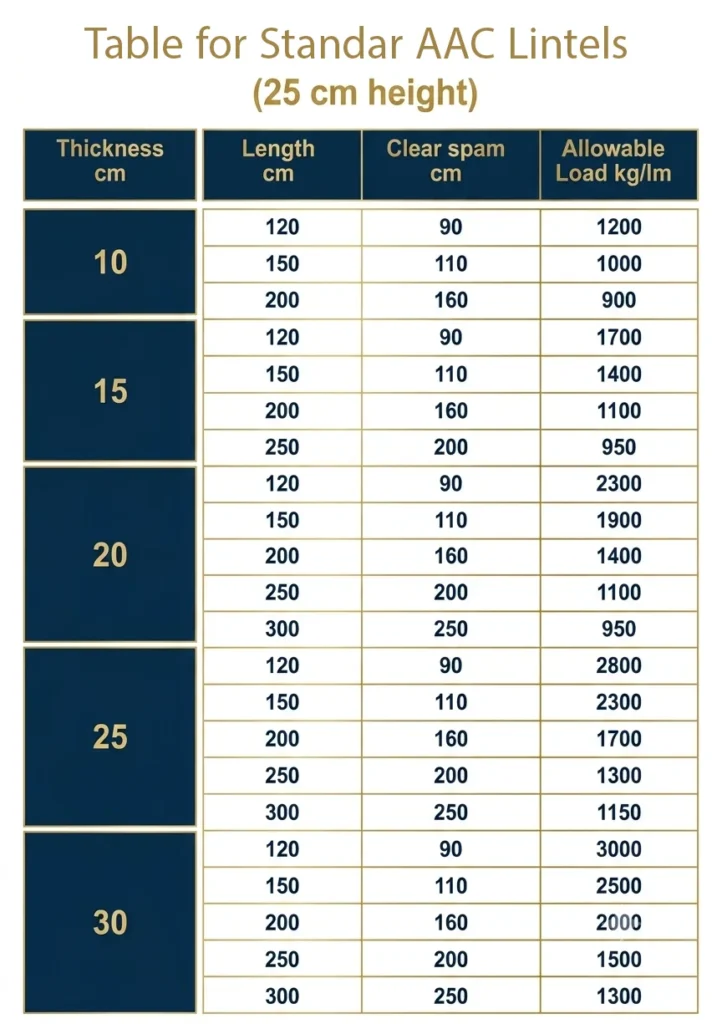

ASLAN AAC lintels in Qatar are available in various sizes to cover a wide range of openings for doors, windows, etc. Since they are constructed from the same material of Autoclave Aerated Concrete, same as ASLAN AAC blocks, the surfaces are easily finished and the possibility of cracks due to different thermal expansion is reduced.
ASLAN lintels facilitate work on site, maintain insulation and avoid thermal bridges caused by the use of traditional concrete lintels. he traditional method for preparing concrete lintels requires much work such as shuttering, preparing of reinforcement and it is also much more time consuming.
ASLAN lintels are produce according to code DIN EN 12605. The reinforcement is anti corrosive protected like other reinforced ASLAN slabs and panels. Standard lintels designed for a minimum 20 cm support at both ends. With a maximum span between supports of 260 cm
The thin-bed Mortar (glue) is an adhesive mortar tor quick and firm laying of ASLAN blocks with thin joints. It is used to bind the blocks into masonry with high stability.
The glue is manufactured from fin sand, cement and some adhesives, resulting in good bonding properties.
The thickness of the joints 3-5 mm, thus preserving the unique thermal-insulation qualities.
ASLAN repair mortar is specially produced only for the AAC products and is not common in the market.
The component of the AAC products is the same material which is used to produce the repair mortar and this component to be exactly the same properties of AAC products.

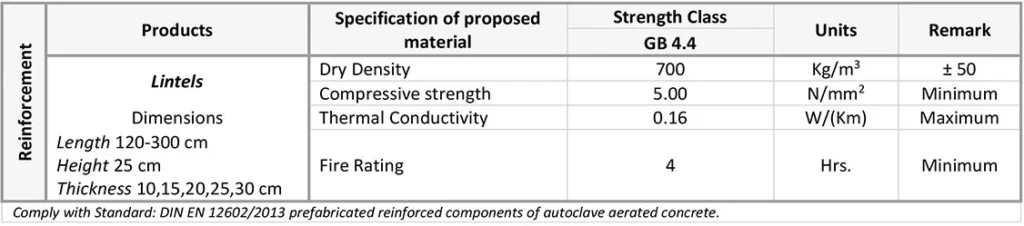

Specifications of ACICO AAC Products Building Materials
